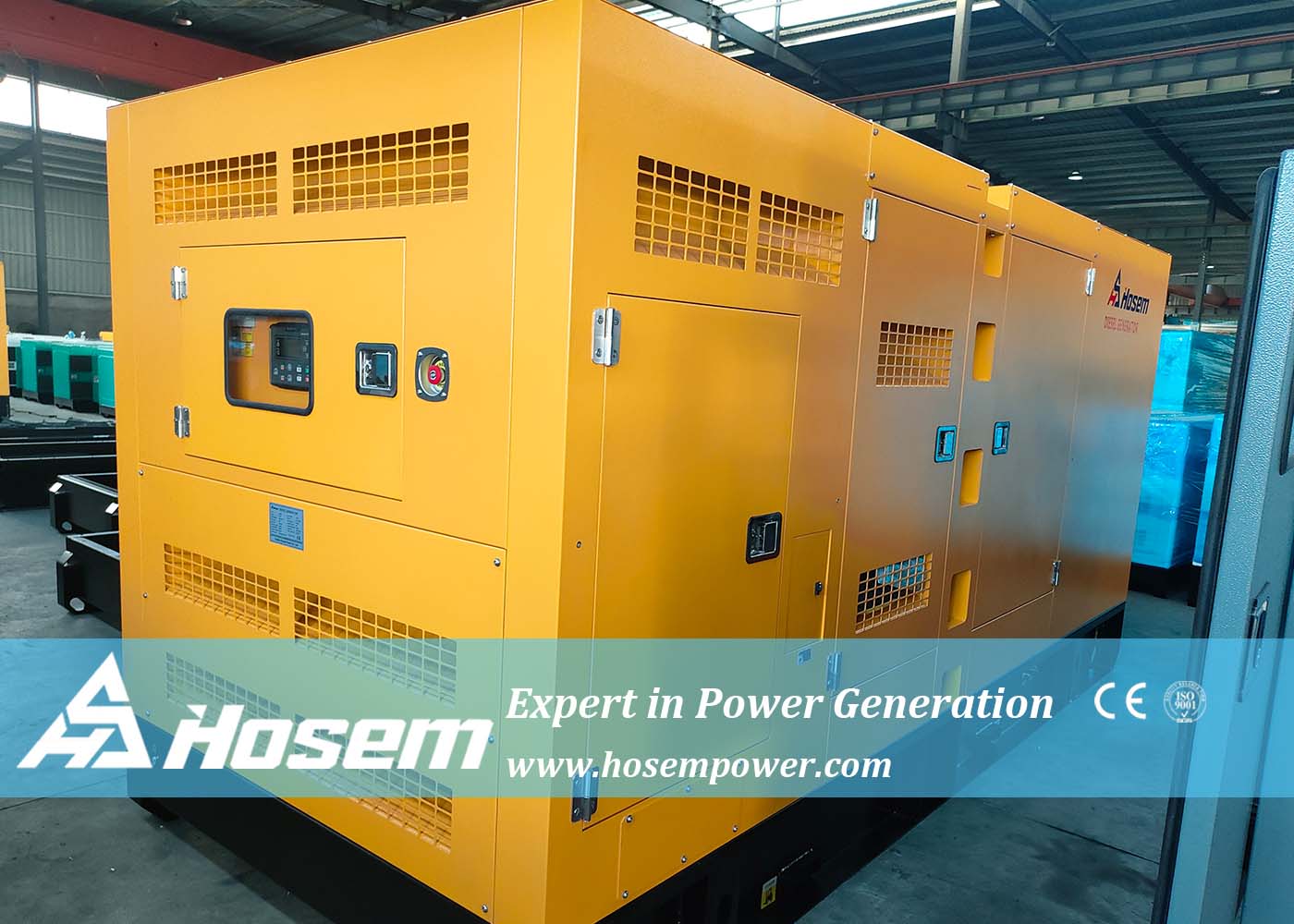

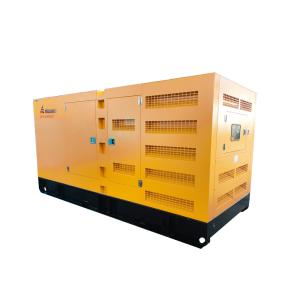

500kVA Generator for Sale Powered by USA Cummins Engine
Introducing our robust and reliable 500kVA diesel generator set, fortified with a high-performance Cummins engine. Designed to deliver exceptional power and endurance, this generator is built to cater to diverse industrial and commercial needs with unwavering efficiency.
Generator Configuration:
- Engine: Renowned Cummins-powered, ensuring superior performance and durability.
- Alternator: Stamford technologies high-grade alternator for consistent and reliable power output.
- Cooling System: Efficient cooling system designed for optimal engine performance, suitable for tropical climate
- Fuel System: Cummins BYC fuel injection pump, advanced fuel injection system for fuel efficiency and reduced emissions.
- Control Panel: Deepsea brand Smart and intuitive control panel for seamless operation and monitoring.
- Enclosure: 2mm thickness canopy, soundproof and water-proof, sturdy and weather-resistant enclosure ensuring durability and protection.
- Safety Features: Equipped with safety mechanisms for enhanced reliability and longevity.
- Voltage Regulation: Precise voltage regulation for stable and consistent power supply.
- Fuel Tank: Generous capacity fuel tank ensuring 6 operation hours.
This 500kVA powerhouse is engineered to meet and exceed demanding requirements, providing reliable and uninterrupted power supply in critical scenarios. Whether for industrial operations, commercial establishments, or large-scale events, this Cummins engine-driven generator ensures consistent performance, reliability, and longevity.
| Generator Set Specification |
| Model | A-C530 |
| Max. Power | kVA | 530 |
| kW | 424 |
| Rate Power | kVA | 500 |
| kW | 400 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 721.7 |
| Fuel Tank Capacity | L | 800 |
| Dimension For Open-type Genset | mm | 3300 X 1100 X 1650 |
| Weight For Open-type Genset | kg | 3400 |
| Dimension For Soundproof Genset | mm | 4350 X 1450 X 2180 |
| Weight For Soundproof Generator | kg | 4020 |
| Noise Level for Soundproof Generator at 7M | dBA | 80 |
| Battery | Two of Free Maintenance Battery |
| Engine Specification |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | QSZ13-G3 |
| No. of Cylinder | 6 Cylinder in line |
| Aspiration | Turbocharged and Air to Air Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 450 |
| Displacement | L | 13.0 |
| Compression Ratio | 17 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 130 |
| Stroke | mm | 163 |
| Lubrication Oil Capacity | L | 45.5 |
| Intake Air Flow | M3/Min | 28.8 |
| Fuel Consumption at 100% Load | L/H | 101 |
| Alternator Specification |
| Alternator Manufacturer | Mecc Alte |
| Alternator Model | ECO40-3S/4A |
| Alternator Brand | Stamford |
| Rate Output | kVA | 500 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | SX440 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
FAQ
1. What does "kVA" mean in a 500kVA generator?
- "kVA" stands for kilovolt-ampere, a unit used to measure the apparent power in an electrical circuit. A 500kVA generator refers to its capacity to provide up to 500 kilovolt-amperes of power.
2. What applications can a 500kVA generator power?
- A 500kVA generator is suitable for a wide range of applications, including industrial sites, large-scale construction projects, hospitals, data centers, manufacturing facilities, commercial buildings, events, and more. It can reliably power heavy machinery, HVAC systems, critical equipment, and large electrical loads.
3. How efficient is a 500kVA generator?
- Efficiency varies based on the specific model and load conditions. However, modern 500kVA generators, especially those with advanced fuel injection systems and voltage regulation technology, are designed for optimal fuel efficiency while delivering consistent power output.
4. What fuel type does a 500kVA generator use?
- Generators of this size often run on diesel fuel due to its energy density and efficiency. Some models may offer flexibility in fuel options, including biodiesel or natural gas, depending on the specific generator's design.
5. How much space does a 500kVA generator require?
- The space needed for a 500kVA generator depends on its configuration, including the size of the enclosure and any additional equipment. Generally, these generators require a dedicated area with sufficient ventilation and clearance for safe operation and maintenance.
