Product Description:

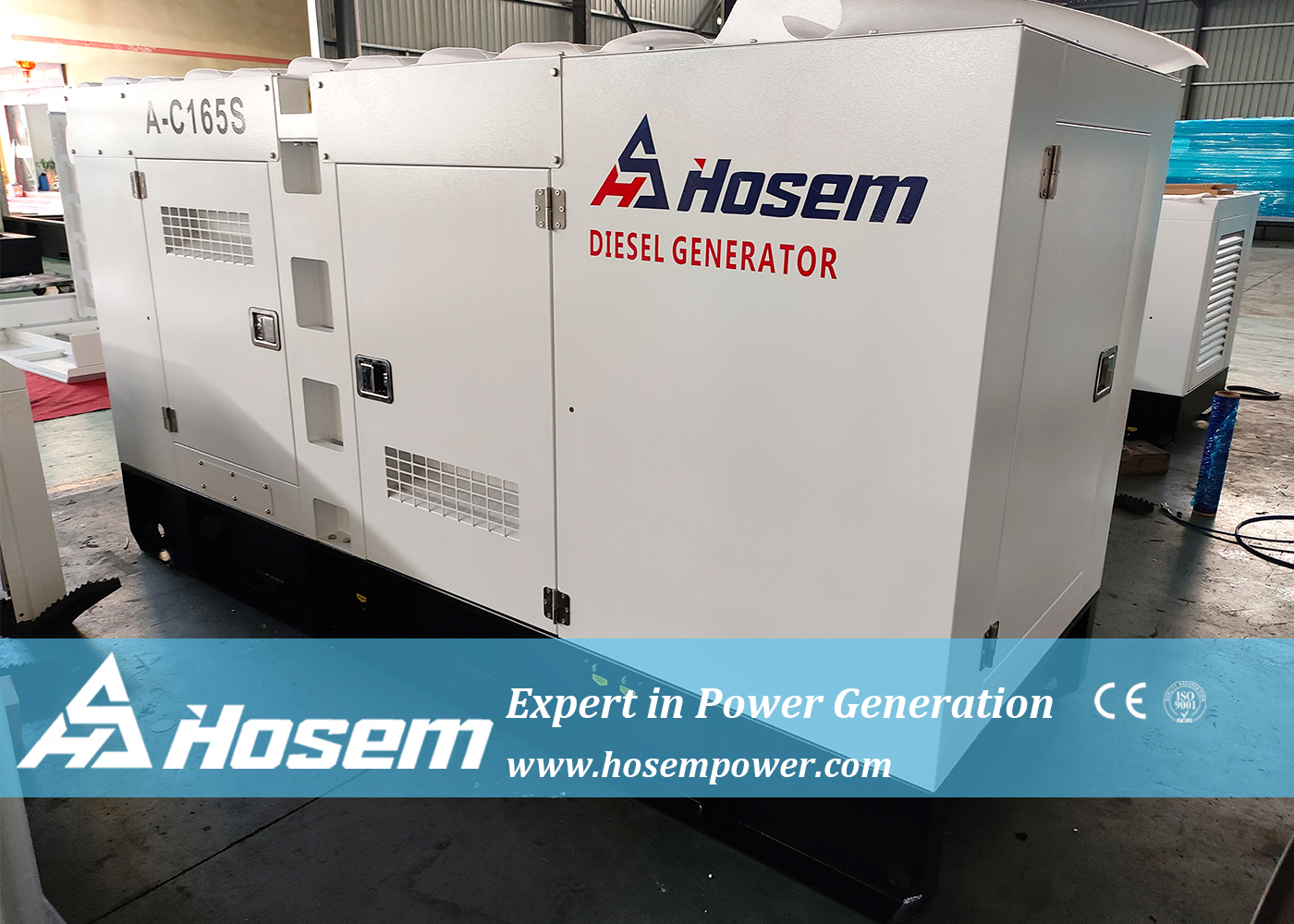

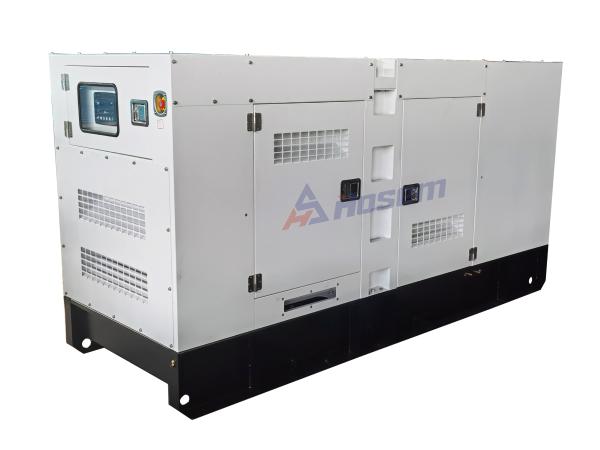

1-The diesel generator set has a backup power output of 165 kVA/132 kW and a main output power of 150 kVA/120 kW, which can provide reliable and stable power for various applications. The Cummins 6BTAA5.9-G12 engine is renowned for its durability and efficiency, ensuring your power needs are met with ease.
2-Whether you need a backup power source for your home, a reliable generator for your business, or a power source for your industrial equipment, the Cummins A-C165 engine generator set is the choice Perfect. Its energy efficiency make it an environmentally friendly option, while its Hosem ASF274FS alternator provides stable and consistent power output.
3-Ordering is easy, with a minimum order quantity of just 1 set and negotiable pricing. Choose from a wooden package or plastic foam package for safe and secure transport, and enjoy a delivery time of approximately 30 days.
4-Payment terms include L/C and T/T, and we have a supply ability of 300 units per month.
5-Invest in the Hosem A-C165 Cummins engine generator set for a reliable and efficient power source for all your needs.
Technical Parameters:
| Generator Set Specification |
| Model | A-C165 |
| Max. Power | kVA | 165 |
| kW | 132 |
| Rate Power | kVA | 150 |
| kW | 120 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 216.5 |
| Fuel Tank Capacity | L | 280 |
| Dimension For Open-type Genset | mm | 2200 X 900 X 1380 |
| Weight For Open-type Genset | kg | 1400 |
| Dimension For Soundproof Genset | mm | 3200 X 1080 X 1500 |
| Weight For Soundproof Generator | kg | 1920 |
| Noise Level for Soundproof Generator at 7M | dBA | 75 |
| Battery | Two of Free Maintenance Battery |

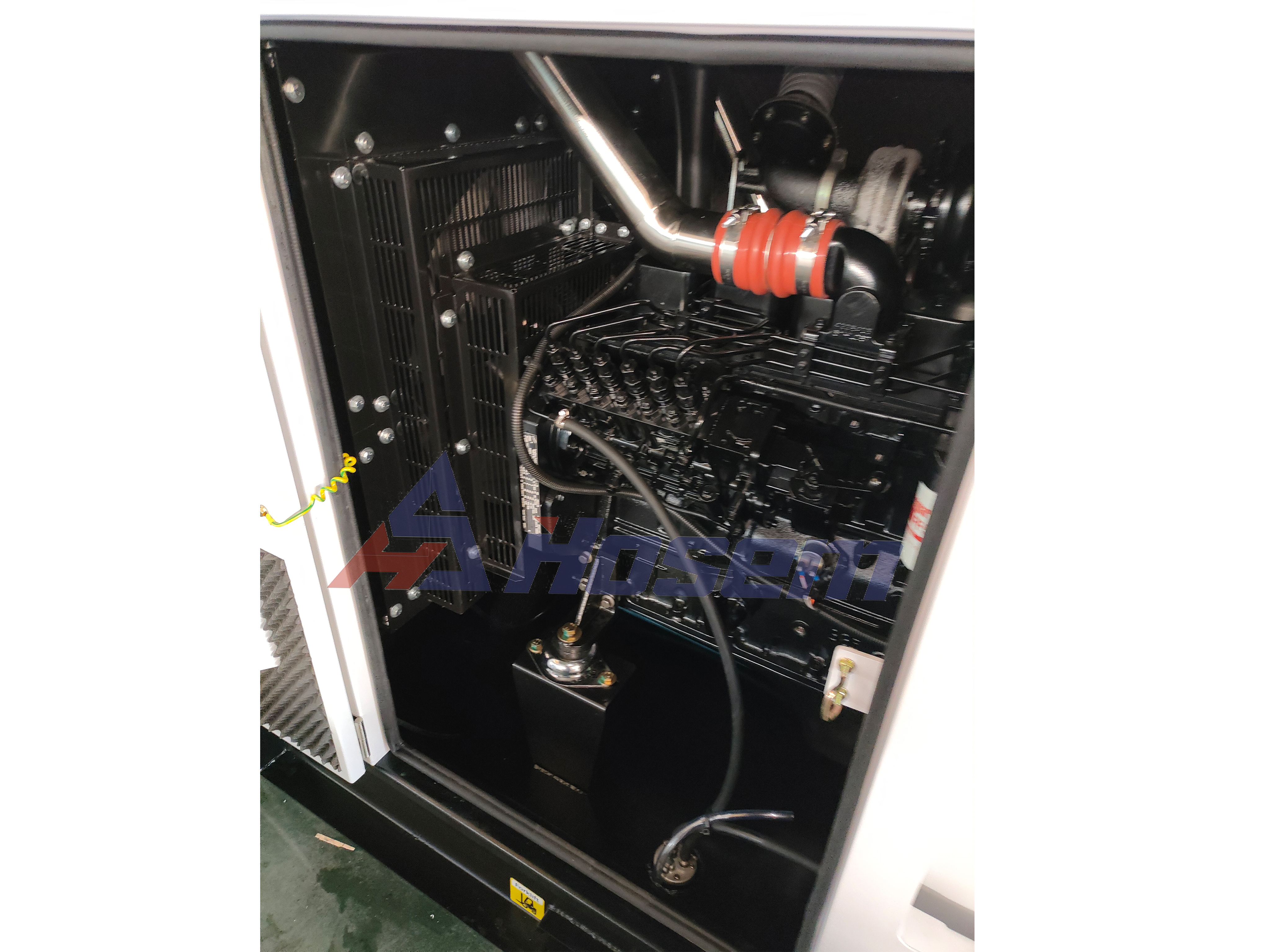

Technical data--Engine
| Engine Specification |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | 6BTAA5.9-G12 |
| No. of Cylinder | 6 Cylinder in line |
| Aspiration | Turbocharged and Air to Air Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 154 |
| Displacement | L | 5.9 |
| Compression Ratio | 17.3 : 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 102 |
| Stroke | mm | 120 |
| Lubrication Oil Capacity | L | 16.4 |
| Intake Air Flow | M3/Min | 7.6 |
| Fuel Consumption at 100% Load | L/H | 34 |
Technical data--Alternator
| Alternator Specification |
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF274FS |
| Alternator Brand | Hosem |
| Rate Output | kVA | 150 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | SX440 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
FAQ:
Q1: What is the brand name of this generator set?
A1: The brand name of this generator set is Hosem.
Q2: What is the model number of this generator set?
A2: The model number of this generator set is A-C165.
Q3: Where is this generator set manufactured?
A3: This generator set is manufactured in China.
Q4: Does this generator set come with any certification?
A4: Yes, this generator set is certified with CE/ISO9001.
Q5: What is the minimum order quantity for this generator set?
A5: The minimum order quantity for this generator set is 1 set. However, the price is negotiable based on the quantity ordered.
Q6: What are the packaging details for this generator set?
A6: The packaging details for this generator set can be either a wooden package or a plastic foam package, depending on your preference.
Q7: What is the delivery time for this generator set?
A7: The delivery time for this generator set is about 30 days.
Q8: What are the payment terms for this generator set?
A8: The payment terms for this generator set can be either L/C or T/T.
Q9: What is the supply ability for this generator set?
A9: The supply ability for this generator set is 300 units per month.
